![merging-2-bagging-lines-into-1-stretch-wrapper](https://www.tinsleycompany.com/wp-content/uploads/2024/05/merging-2-bagging-lines-into-1-stretch-wrapper-1024x576.jpg)
Pallets stacked by 2 robotic palletizers are automatically conveyed into one stretch wrapper. A hood is also applied during wrapping.
Watch a Video Demonstration:
A company that bags mineral products added an automatic stretch wrapper to their existing bagging lines. Pallets stacked by 2 robotic bag palletizers are automatically conveyed into one stretch wrapper. A hood is also applied during wrapping.
Process Description
![robotic bag palletizer stacking bags on left bagging line](https://www.tinsleycompany.com/wp-content/uploads/2024/05/robotic-bag-palletizer-stacking-bags-on-left-bagging-line-1024x576.jpg)
50 pound bags are filled on 2 separate bagging lines with mineral products and then fed into bag sealing equipment. After filling and sealing, the bags are transferred to robotic palletizers that automatically stack the bags on pallets. Once the pallets are full, they are automatically conveyed to a single conveyor with traffic control that automatically indexes them into an automatic stretch wrapper.
![bag palletizing robot stacking 50 lb bags on right bagging line](https://www.tinsleycompany.com/wp-content/uploads/2024/05/bag-palletizing-robot-stacking-50-lb-bags-on-right-bagging-line-1024x576.jpg)

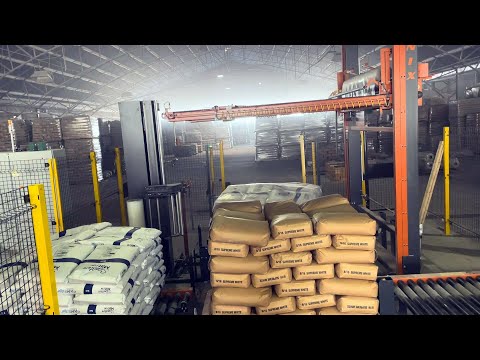

The automatic stretch wrapper uses a turntable to spin and wrap the pallets. During the wrapping process, a hood (sheet of plastic) is automatically draped over the pallet to lock the top bags in place and provide protection. After wrapping, the pallets are fed to the end of the bagging line where an operator retrieves them for shipping or storage.
![automatic stretch wrapper applying hood to pallet with bags](https://www.tinsleycompany.com/wp-content/uploads/2024/05/automatic-stretch-wrapper-applying-hood-to-pallet-with-bags-1024x576.jpg)
