Industrial Sifters, Sieves, and Screening Equipment
Improve product quality with industrial sifters and screening equipment for check screening, bag dumping, fine powders, and bulk materials today.
Farleygreene industrial sifters, sieves, and screening equipment help improve product quality, remove contamination, separate oversize material, and support hygienic processing in food, pharmaceutical, chemical, and additive manufacturing applications. The broader product line includes check screening machines, grading sieves, centrifugal sifters, linear screeners, small batch sieves, and ultrasonic screening systems for wet or dry processing.
We supply Farleygreene screening equipment for customers in the USA who need reliable product separation, dust-tight operation, and easy-clean hygienic designs. Many models are available in stainless steel and are designed for demanding sanitary and quality-controlled environments.
Whether you need a compact check screener for a production line, an ergonomic bag dump station, a modular small-batch sieve, a centrifugal sifter for higher-volume materials, or an ultrasonic system to reduce mesh blinding, Farleygreene offers a focused line of industrial screening solutions.
Jump to a section below:
- Check Screening Equipment
- Bag Dump and Small Batch Sieves
- Centrifugal Sifters
- Ultrasonic Screening Systems
Need help selecting the right equipment? Contact our sales team to discuss your material, required capacity, particle size, sanitary requirements, and installation needs.
Call: (979) 217-1480
Check Screening Equipment

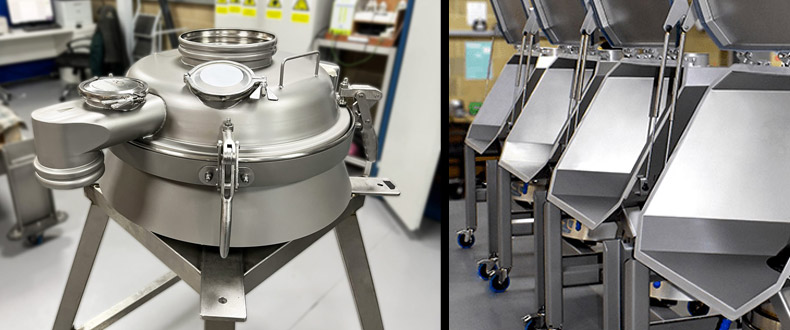

Check screening equipment removes oversize particles and FOD (foreign object debris), such as lumps, agglomerationsoversize material, packaging, glove fragments, etc and other unwanted contamination from powders, granules, and some liquid products. These machines are often installed at the beginning of a process for product and equipment protection or near the end of a line for final quality control.

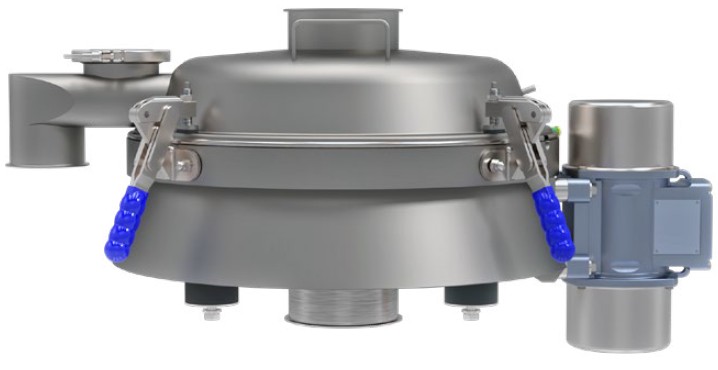

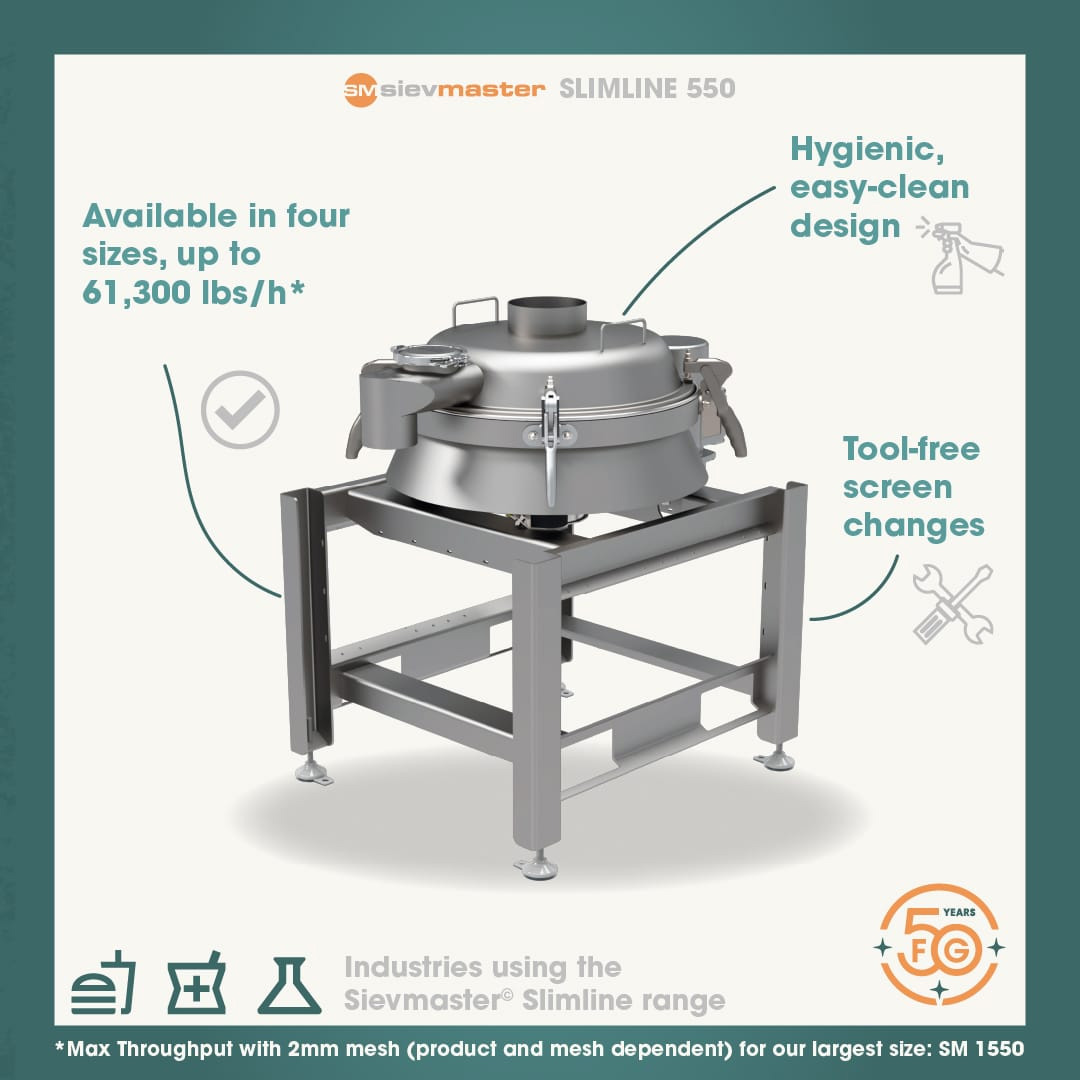

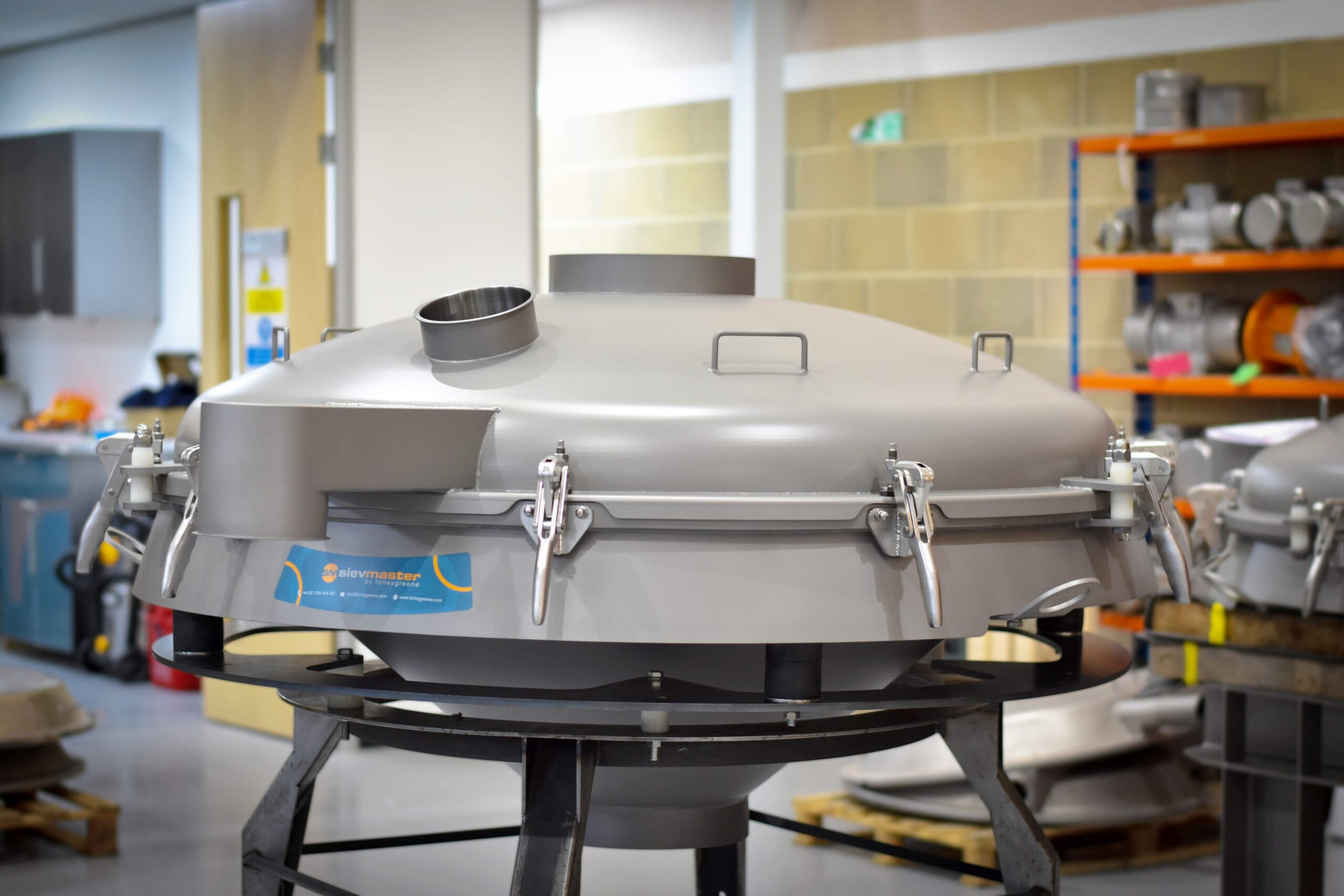

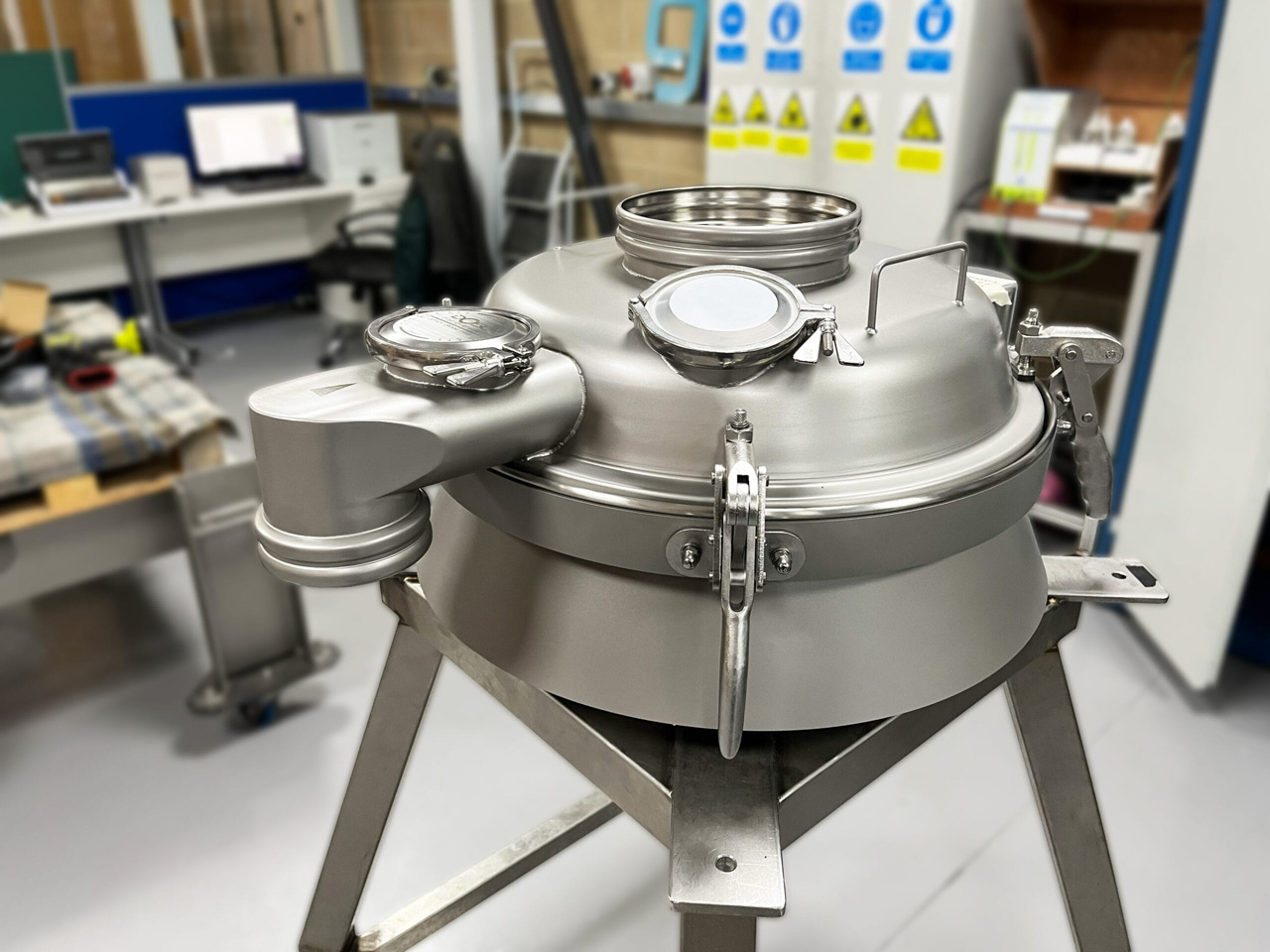

Sievemaster Slimline Check Screening Machines

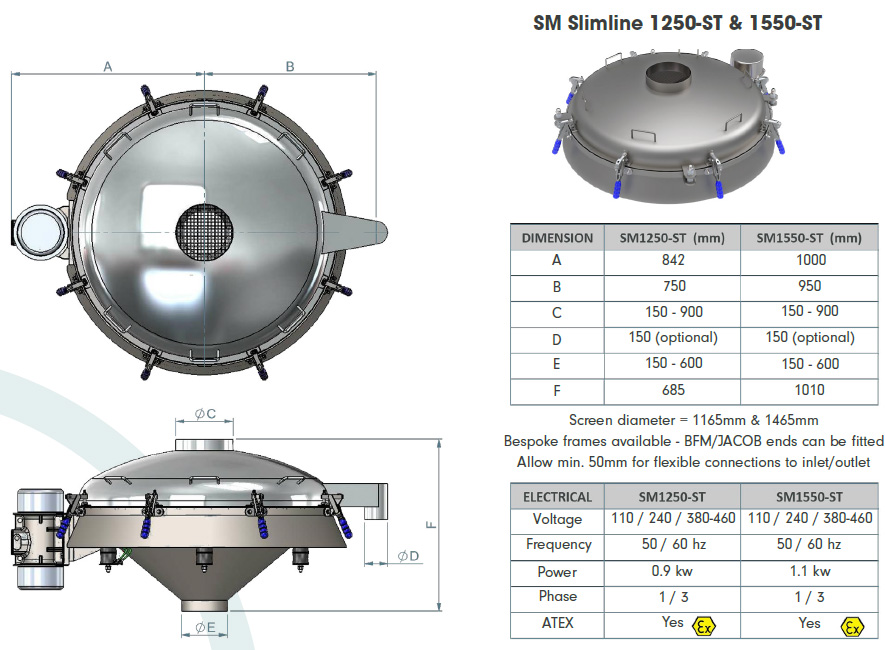

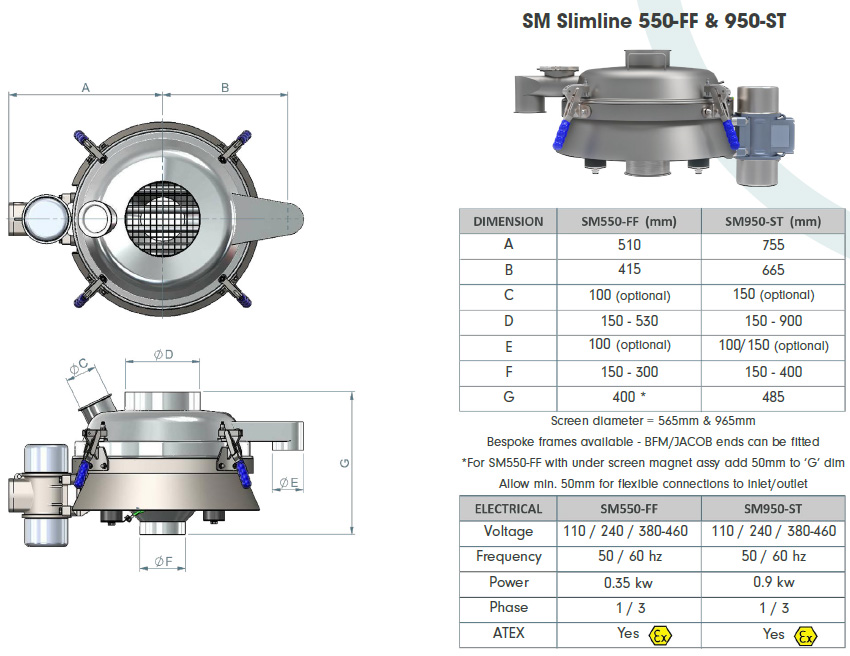

The Sievmaster Slimline is a compact industrial check screener for gravity-fed installation in new or existing production lines. It can screen material into bins, big bags, conveyors, and hoppers, and is available in four diameters.
- Compact check screener for new or retrofit installations

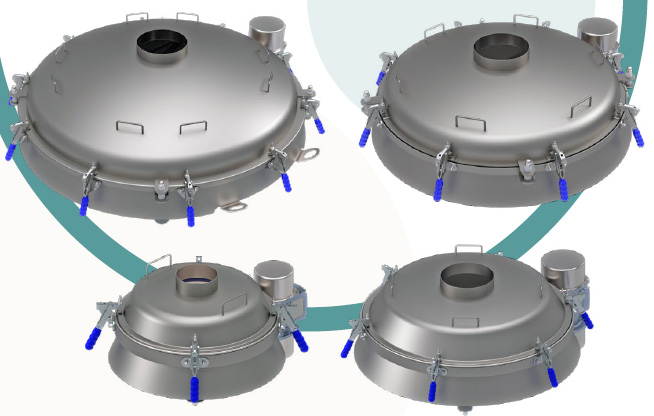

- Available in four diameters: SM550 (22"), SM950 (38"), SM1250 (50", and SM1550 (61")
- Easy-clean hygienic design with stainless steel body and contact parts
- Tool-free, quick-change screens
- Wet or dry applications
- Dust and waterproof to at least IP65
- Rated ATEX zone 21 II 2 D, NFPA Class II, Division 1
- Optional ultrasonic upgrade, magnet assemblies, and oversize control options

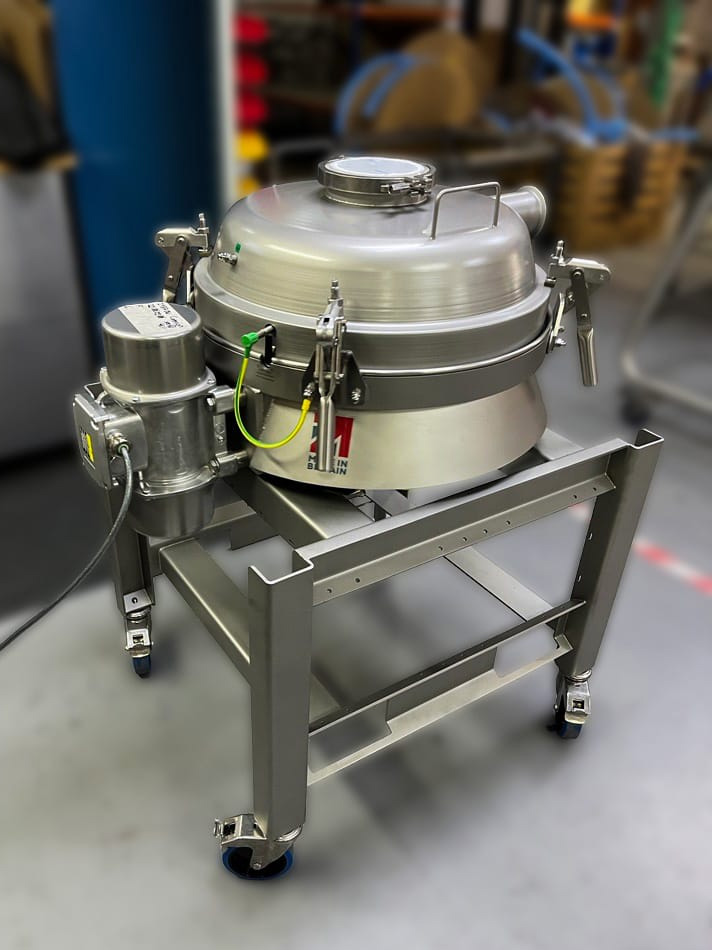

Best for customers who need a compact, hygienic industrial sifter that fits easily into a production line without a large footprint. It is well suited for food, beverage, pharmaceutical, and chemical powders and granules, and can also handle some liquid separation duties. For very fine or dusty materials, Farleygreene also offers dedicated vacuum and pressure models within the wider Slimline family.
Images
Click or tap a thumbnail below to view a larger image.
Videos Coming Soon
Need help fast? Use our Express Contact Form
Call: (979) 217-1480
Bag Dump and Small Batch Sieves

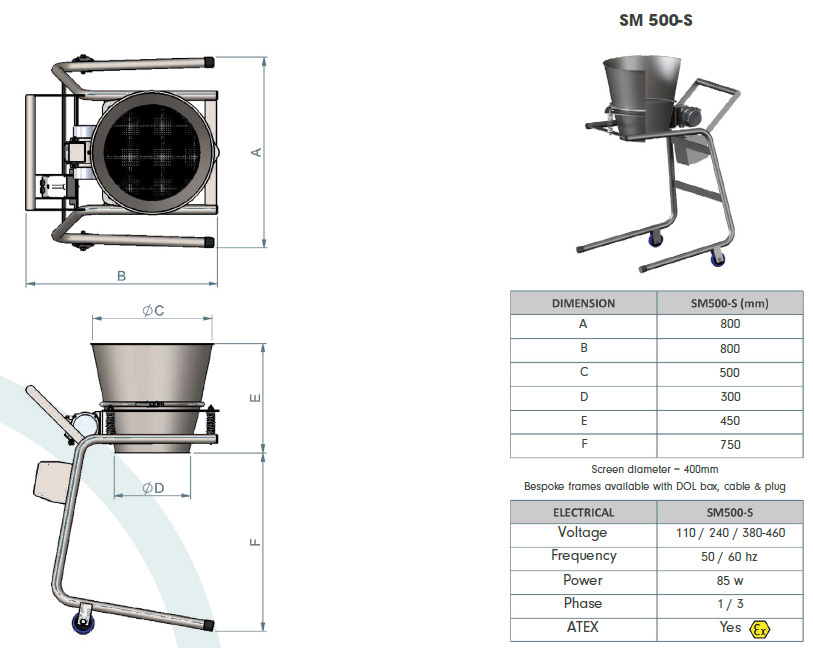

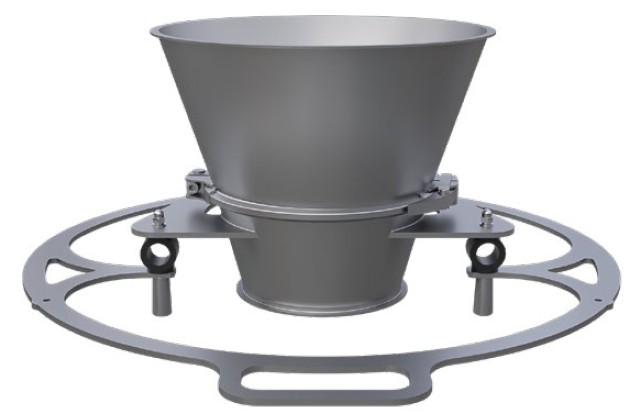

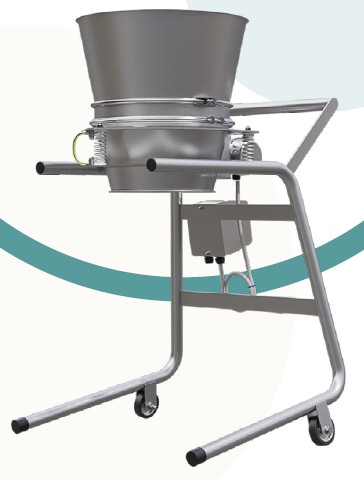

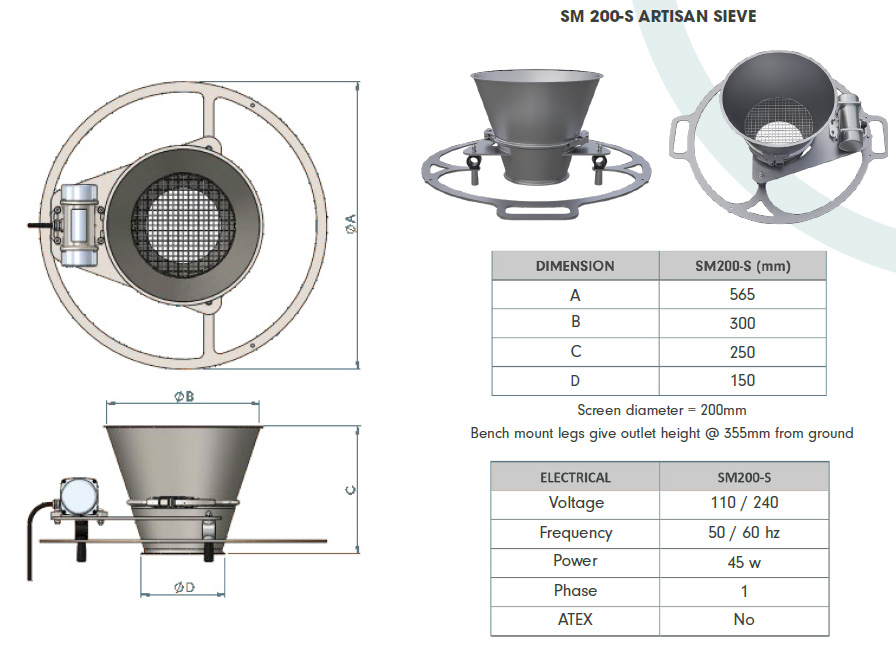

For customers handling hand-loaded bags, short runs, or lower-volume production, Farleygreene offers machines that combine screening performance with operator-friendly loading and flexible installation. The wider product line also includes other small-batch models such as the 200-S and 500-S. These models are optionally equipped with integral bar magnet.
1. Bag Dump Screeners

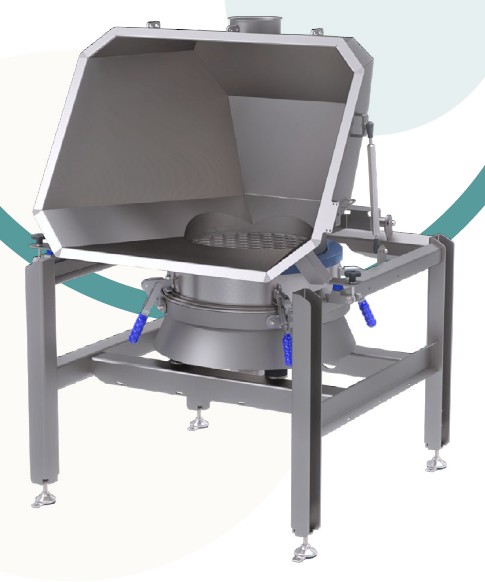

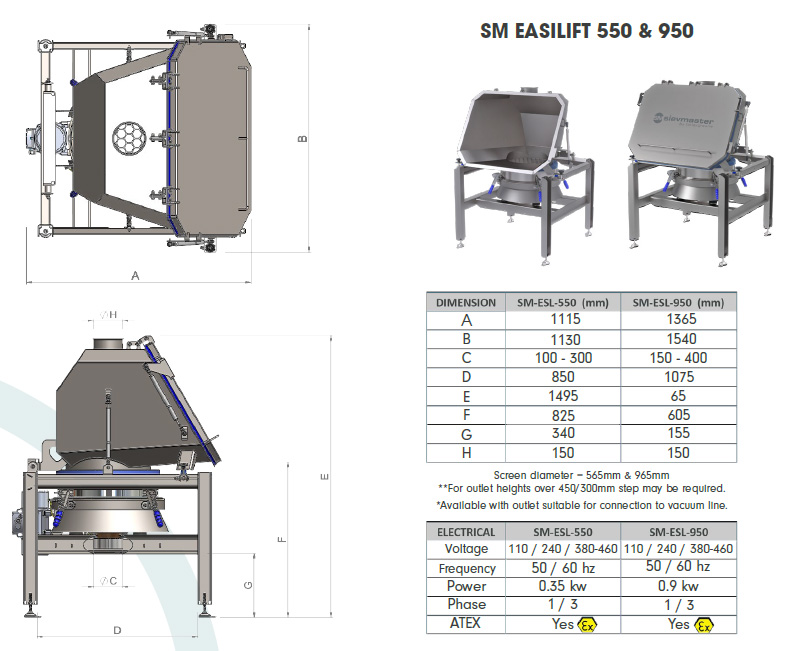

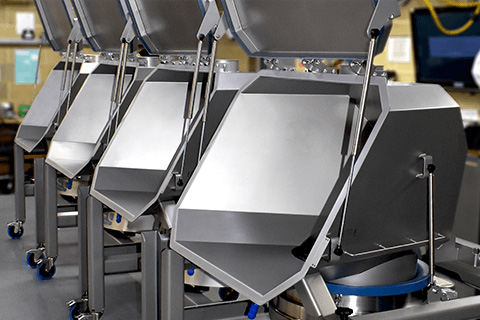

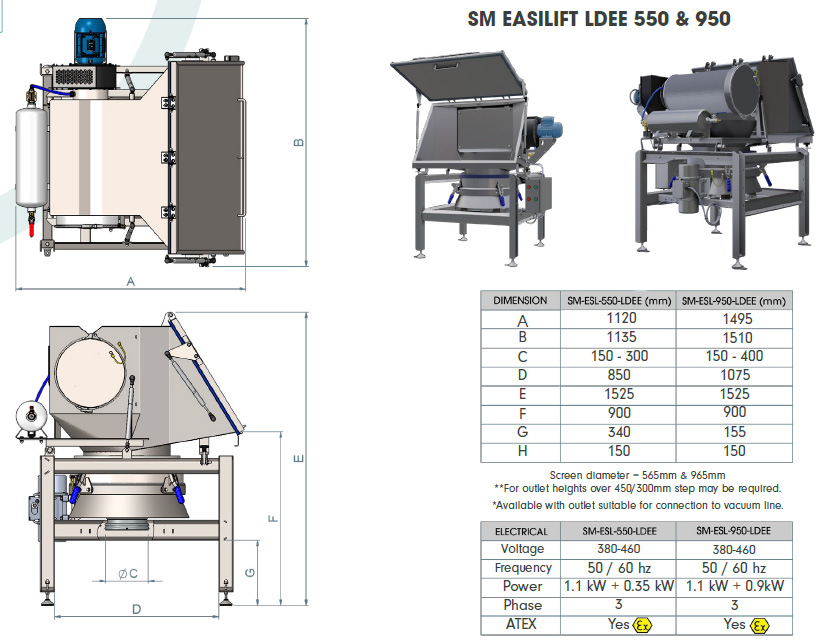

The Slimline Easilift is a bag dump sieve station designed to process up to 25 kg of product at one time. It combines either the 550 or 950 Slimline sieve with an inclined bag rest table and power-lift dust hood to reduce heavy lifting and help contain dust during loading.
- Processes up to 25 kg at a time
- Uses either the 550 or 950 Slimline sieve
- Inclined bag rest table for ergonomic bag dumping
- Power-lift hood and self-sealing diaphragm for dust control
- Easy-clean hygienic design with tool-free, quick-change screens
- All stainless-steel body and contact parts
- Dust and waterproof to at least IP65
- Optional local dust extraction, side outlet, ultrasonic upgrade, and magnet assembly
Ideal for customers who want the screening performance of the Slimline platform together with a safer, more ergonomic bag dumping arrangement. Itarrangement. It is especially useful where dust control, easy cleaning, and manual loading from bags or small containers are important.
Images
Click or tap a thumbnail below to view a larger image.
Videos Coming Soon
Need help fast? Use our Express Contact Form
Call: (979) 217-1480
2. Modular Screening Systems

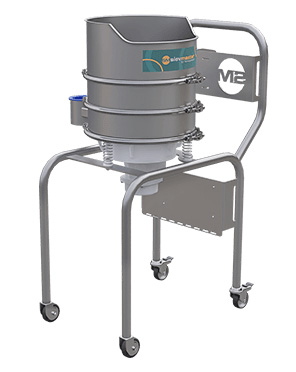

The Sievmaster E-400 is a modular check sieve built on a mobile frame and designed for flexible small-batch operation. It can be adapted for check screening, grade sieving, or low-volume bag dumping, making it a versatile option for food, chemical, and artisan applications.
- Modular small-batch sieve with bag tip or grading configuration
- Can be adapted for check screening, grade sieving, or low-volume bag dumping
- Mobile support frame with stainless steel contact parts
- Easy-clean design with tool-free, quick-change screens
- Wet or dry applications
- Dust and waterproof to at least IP65
- Can sieve directly into tote bins, drums, or bags
- Optional ultrasonic upgrade, mesh deblinding, under screen magnet, and multi-fraction processing
A good fit for customers who want more flexibility from a smaller screening system. Its modular design allows it to be configured for today’s process and adapted later as production needs change.
Images
Click or tap a thumbnail below to view a larger image.
Videos Coming Soon
Need help fast? Use our Express Contact Form
Call: (979) 217-1480
Centrifugal Sifters
Sievmaster Rota Centrifugal Sifters

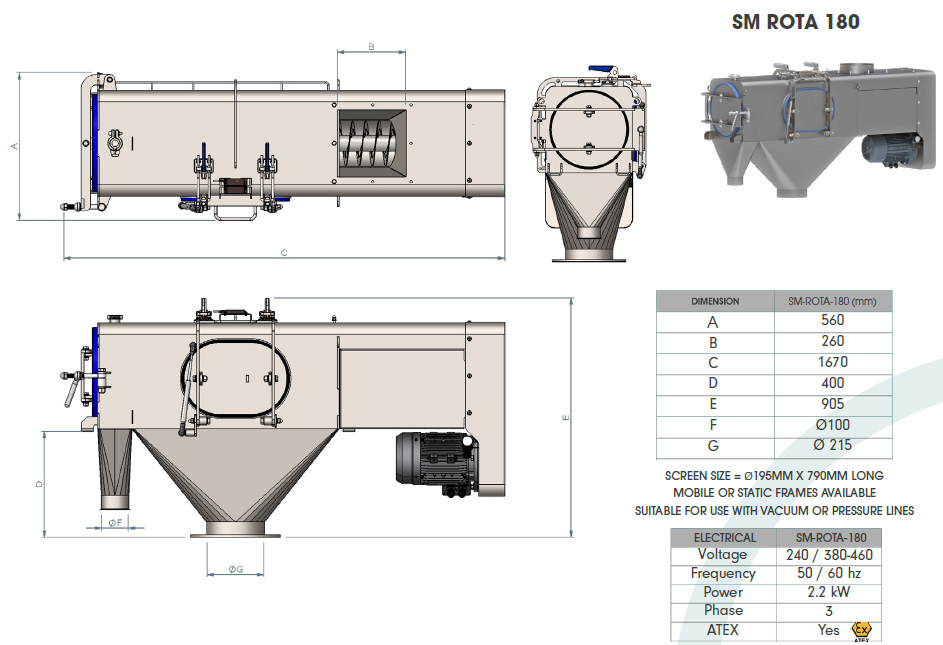

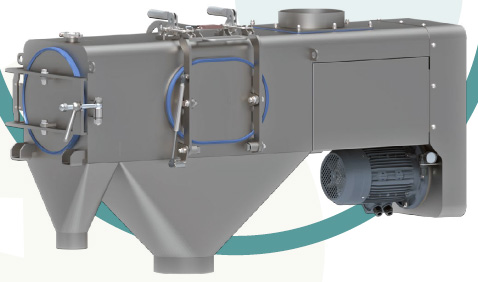

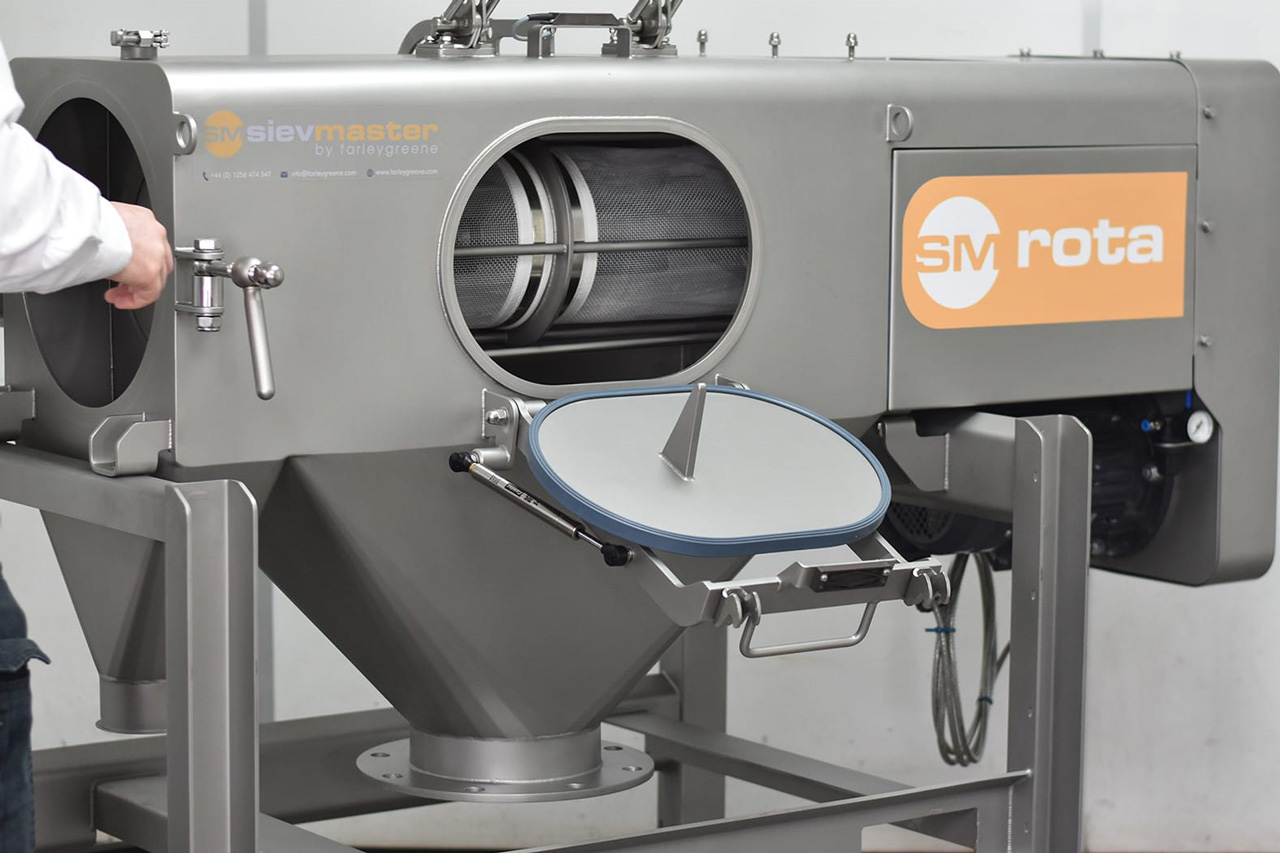

The Sievmaster Rota is a non-vibratory centrifugal sifting solution for higher-volume bulk check screening. Rotating paddles push product outward against a cylindrical mesh, forcing fines through while continuously discharging coarse material through a separate outlet.
- Non-vibratory centrifugal sifting for higher-volume bulk screening
- Continuous separation of fine and coarse material
- Dust-tight design for direct process line installation
- Available in three sizes: 90-C single basket, 180-C single basket, and 360-C twin basket
- Suitable for wet or dry applications
- Can be used with mechanical or pneumatic conveyor systems when properly configured
- Cantilever shaft design allows easy access to the mesh screen
- Optional wedgewire, perforated, or woven mesh screens plus magnet, frame, and outlet options
A strong option when customers need higher throughput than a traditional vibratory check screener can provide, especially for bulk powders or granulated products. Because it is dust-tight and can be configured for gravity, vacuum, or pressure operation, it is especially attractive for enclosed bulk material handling systems.
Images
Click or tap a thumbnail below to view a larger image.
Videos Coming Soon
Need help fast? Use our Express Contact Form
Call: (979) 217-1480
Ultrasonic Screening Systems

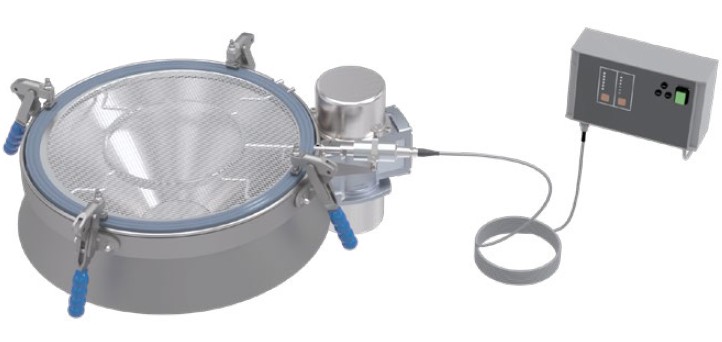

Sievmaster Ultrasonic Screening System
The Sievmaster Ultrasonic Screening System is supplementary equipment designed to prevent mesh blockage and blinding in many Sievmaster machines. It uses a generator and externally mounted converter to apply ultrasonic vibration to the mesh screen, helping maintain throughput and reduce hot spots and premature mesh failure.
- Helps prevent mesh blockage and blinding
- Improves and maintains consistent throughput
- Reduces maintenance by keeping the mesh clear
- Hygienic design with components outside the product flow, except the mesh ring
- Uses frequency sweeping to reduce work hardening and heat build-up
- Self-tuning operation reduces operator input
- Can connect to and be monitored by an external control system via RS232
- Can improve screening of powders below 300 micron and help break down agglomerates
An important upgrade for customers screening fine powders that tend to blind or block the mesh. It can be applied across much of the wider Sievmaster product line, helping maintain throughput and improve screening consistency without moving to a completely different machine design.
Need help fast? Use our Express Contact Form
Call: (979) 217-1480
Need Help Selecting the Right Industrial Sifter or Sieve?
Choosing the right screening equipment depends on your material, throughput, particle size, dust control needs, sanitary requirements, and how the equipment must fit into your process. This page highlights a focused group of Farleygreene products for many of the most common applications.
Contact Tinsley Equipment Company to discuss your application and get help selecting the right Farleygreene equipment for your process.
