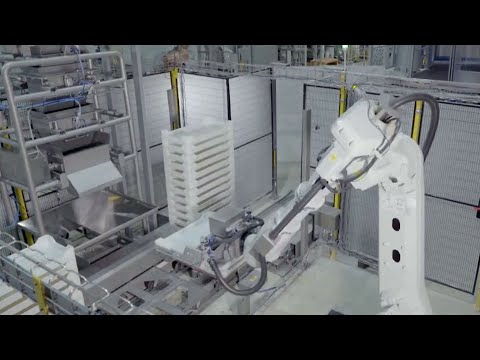

This robotic tray filling system automates tray handling, loading, filling, and stacking of food-safe trays in a production line to boost efficiency and reduce labor. It improves throughput and ensures compliance with FDA and food safety standards.
Process Description
A stack of empty trays is automatically conveyed into the robotic tray handling area.

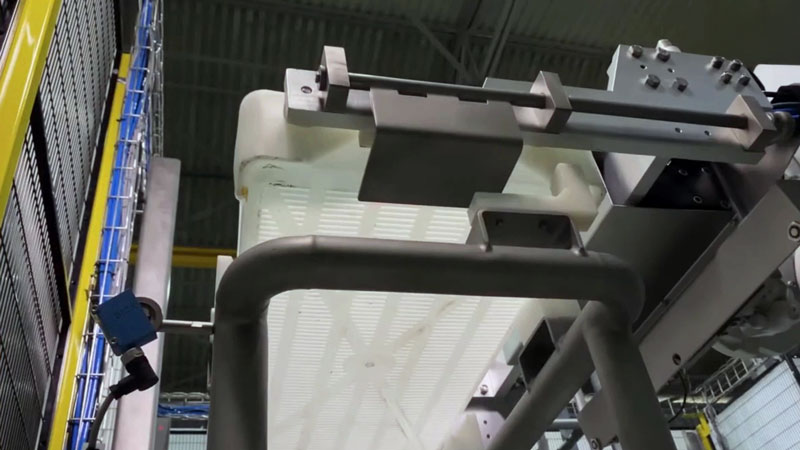

1. The robot uses a custom gripper, or end-of-arm tool, to retrieve and pick up an empty tray from the stack.
2. It positions the empty tray beneath a dispensing or filling machine which discharges a pre-programmed weight of free-flowing food product.
3. Once the tray has been filled, the robot gently places the tray on a stack located on a powered roller conveyor.
4. When the stack is complete, it is conveyed downstream for packaging, freezing, or further processing.
This system includes stainless steel (SS304) contact surfaces and is fully compatible with FDA and USDA sanitary requirements.
Watch a Video
System Highlights
- Fully integrated robotic tray handling and filling
- Compatible with multiple tray sizes or SKUs
- Servo-driven controls for precision placement
- Hygienic stainless-steel design for food safety
- Compact layout for space optimization
- Designed and programmed for 24/7 operation
Additional Applications
This type of robotic tray filling system is ideal for:
- Fruit and nut processing
- Prepared meal packaging
- Frozen food lines
- Bakery, confectionery, or snack operations
- Pet food and ingredient processing
- Industrial automation and packaging lines
Benefits of Robotic Tray Filling Automation
- Reduced labor costs and improved productivity
- 24/7 operation with consistent cycle times
- Improved quality control by minimizing human handling
- Fast changeovers with programmable tray sizes or product recipes
- Enhanced safety by reducing manual lifting and repetitive motion injuries
Ready to Automate Your Tray Filling and Handling Process?
We specialize in the automation of filling, packaging, and handling systems with a focus on industrial automation and robotic integration. Our solutions are designed to grow with your operation through modular upgrades and remote support.
