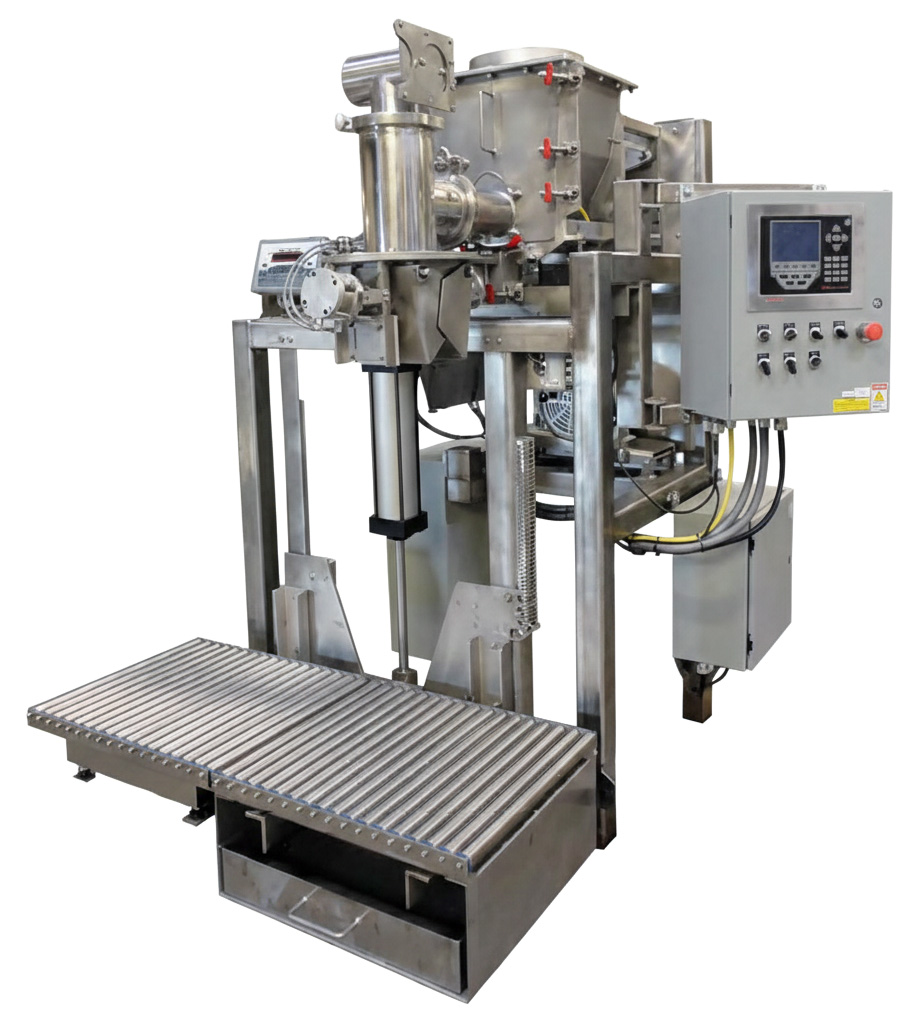

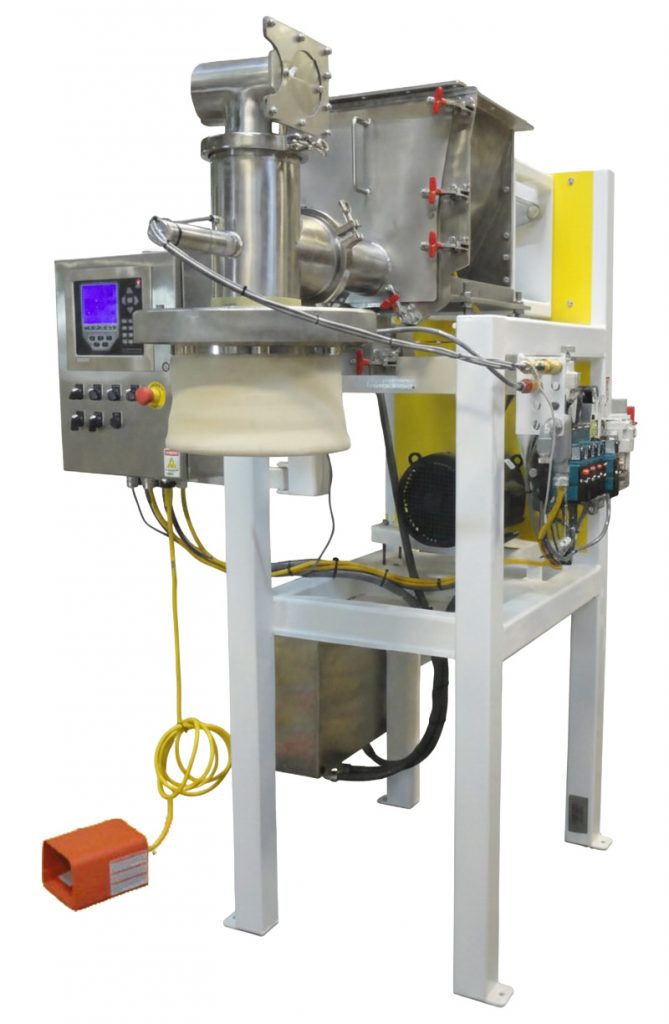

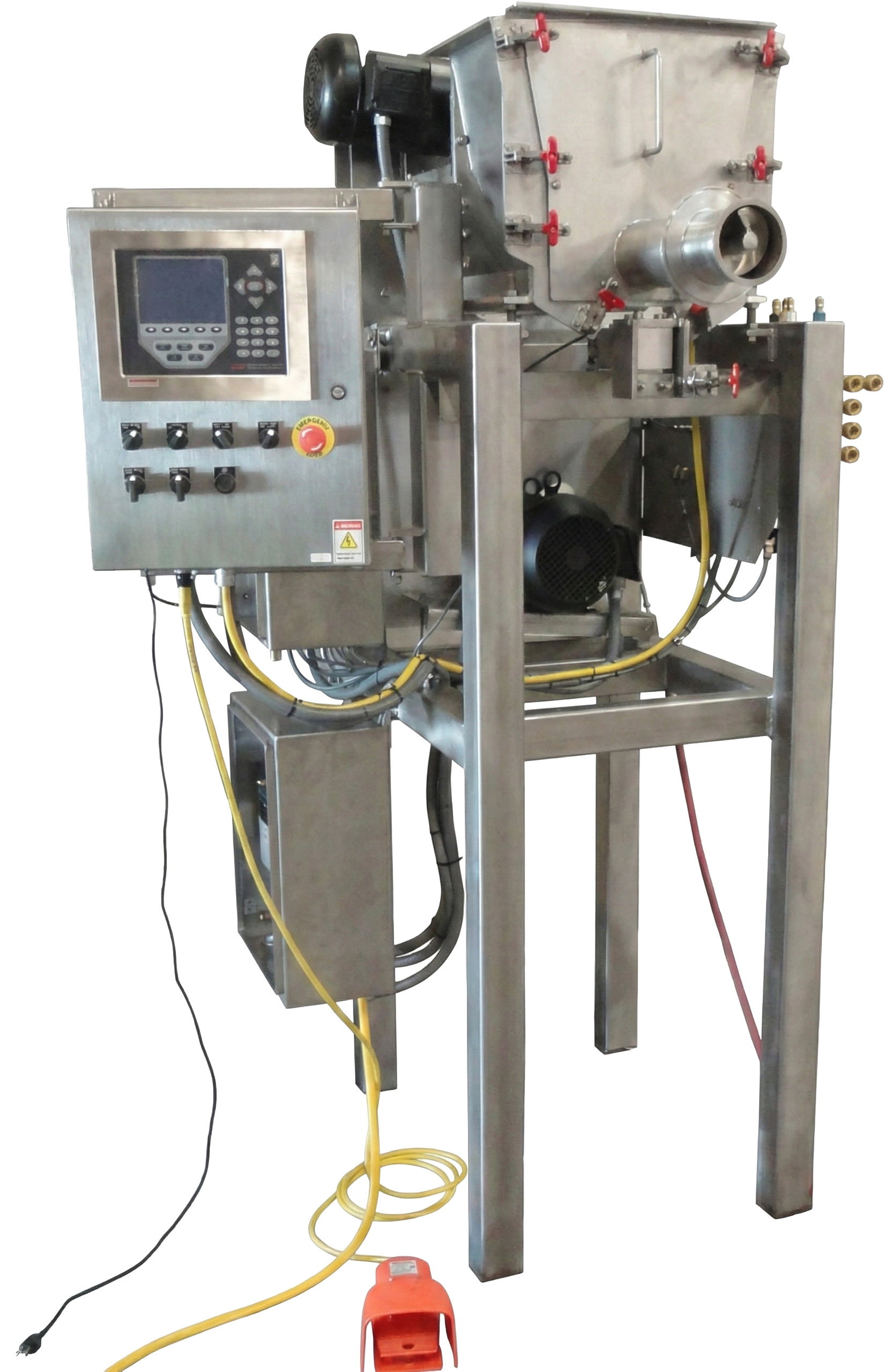

An open mouth auger filler is designed specifically for dry food and ingredient powders such as protein powders, corn flour, wheat flour, starches, baking mixes, seasonings, and dry nutritional ingredients. These products are dusty, compressible, prone to bridging, and sensitive to contamination.
This type of open mouth bagging machine is also designed to meet strict accuracy, sanitation, and repeatability requirements especially when filling larger 50 lb open mouth bags. Each machine provides:
- Predictable, repeatable dosing
- Straightforward mechanical design
- Easy access for inspection and maintenance
- Cleanability aligned with food safety expectations

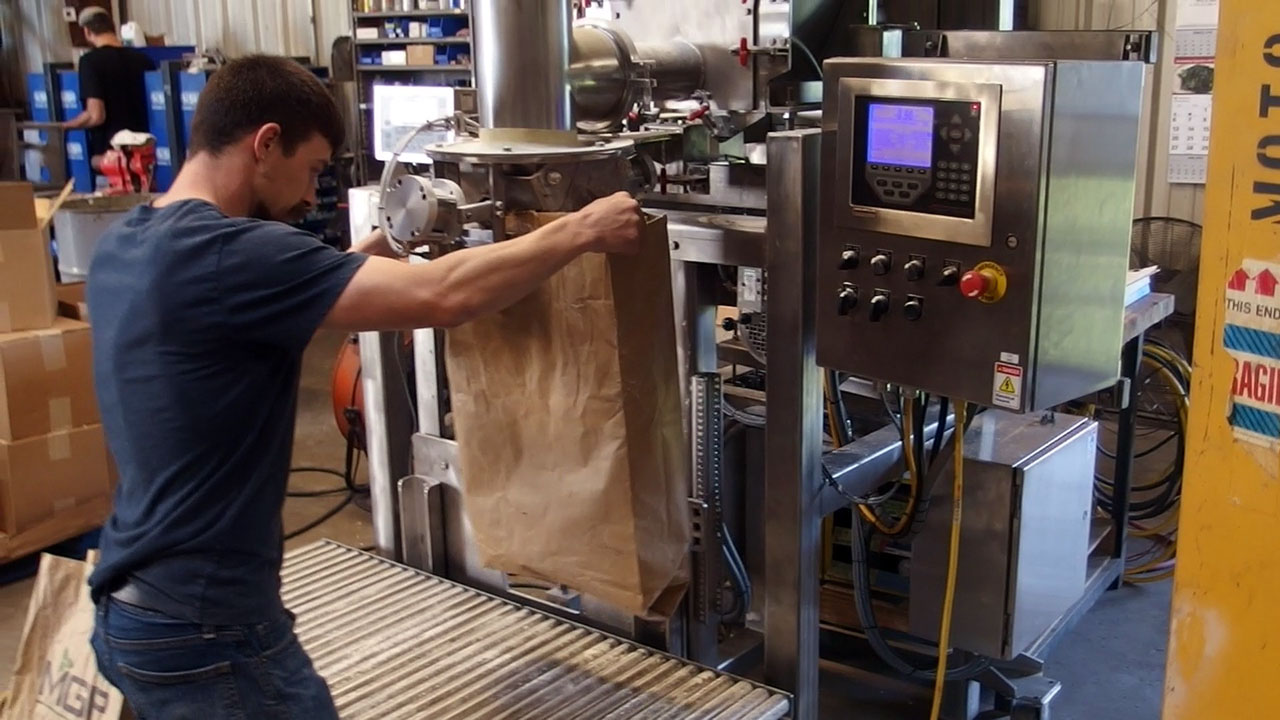

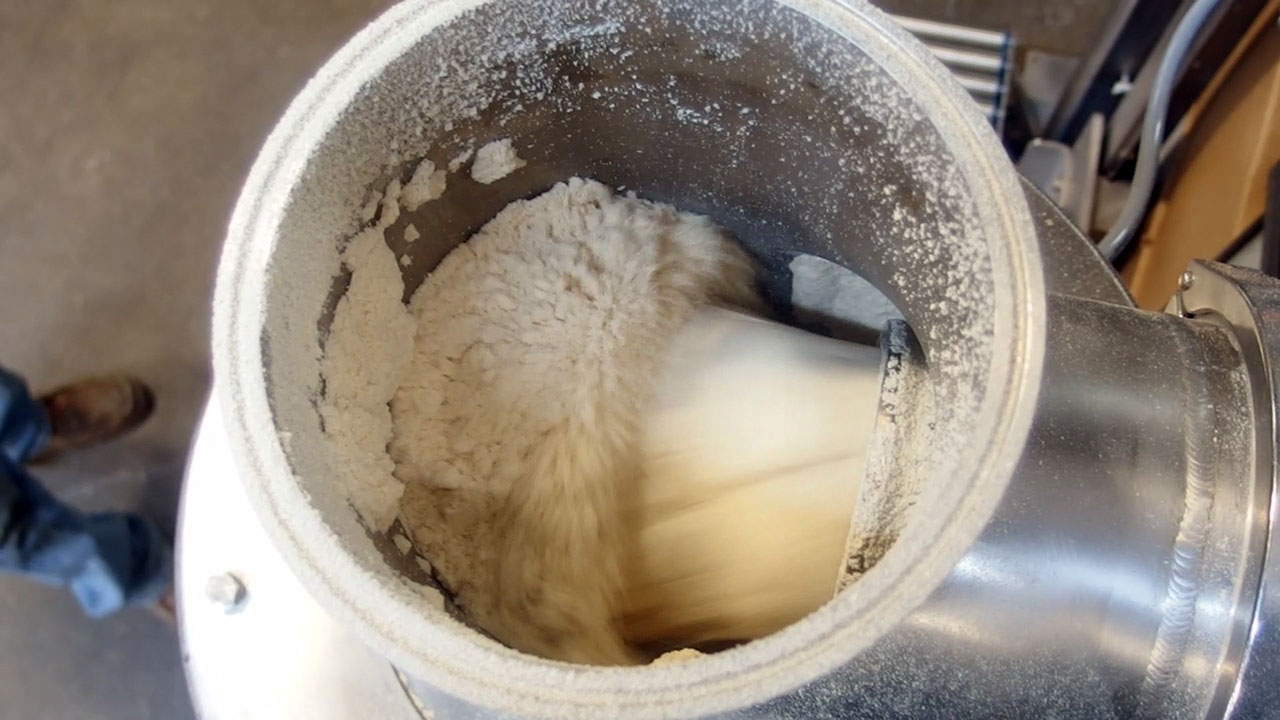

Video Demonstration: Filling 50 lb Bags with Breading Mix, Chicken Flour, and Corn Meal on an Auger Filler
Ask a Question or Get a Price Quote!
Speak with one of our sales engineers today.
Call: (979) 217-1480
Why are Auger Fillers Used to Fill 50 lb Bags of Food and Ingredient Powders?
Unlike gravity-fed, gross weigh or net weigh filling systems that rely on consistent material flow, auger fillers meter product mechanically. A rotating auger conveys powder at a controlled rate, making the system well suited for:
- Fine and semi-free-flowing powders
- Low bulk density or aerated materials
- Products that do not discharge consistently by gravity
Typical food and ingredient powders commonly filled into 50 lb bags using auger fillers include:

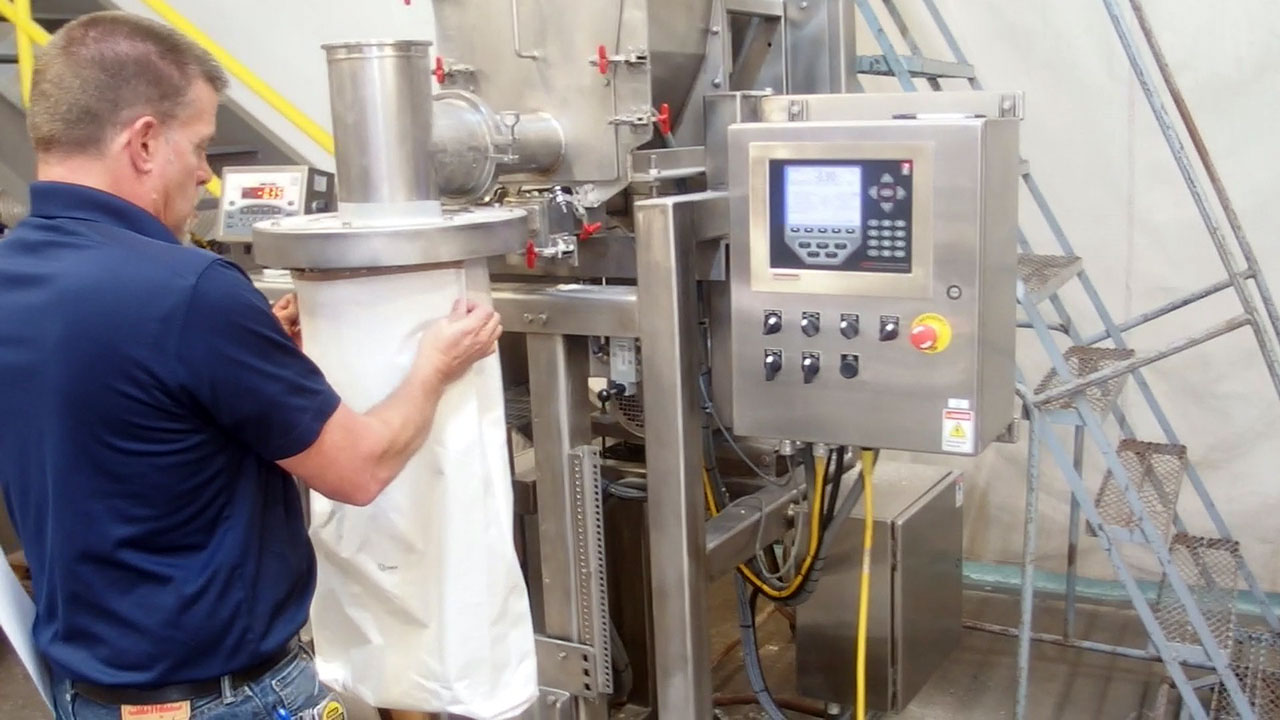

- Protein powders (whey, soy, pea, and blended proteins)
- Corn flour and corn meal
- Wheat flour and specialty flours
- Starches and modified starches
- Baking mixes, breading mixes, and dry blends
- Nutritional and functional ingredients
- Seasoning bases and powdered additives
In these types of applications, auger filling provides controlled dosing, reduced variability, and predictable bag weights.
Can an auger filler handle both protein powder and flour in the same machine?
Yes. Auger fillers are often configured with interchangeable augers, fill spouts, and programmable recipes that allow one machine to fill different food and ingredient powders such as protein blends, corn flour, wheat flour, and starches. However, proper cleaning between products is critical, especially for allergen control.
How Accurate and Repeatable Are Auger Fillers When Filling 50 lb Bags of Food Powders?
Filling 50 lb bags introduces different challenges than small bag and pouch packaging. Product compression, air entrainment, and inconsistent material flow can all affect final bag weight.
Modern auger fillers address these issues through:
- Two-stage auger feed (bulk fill followed by dribble/top-off)
- Fully digital weighing systems
- Programmable fill profiles matched to product behavior
Typical open mouth auger filling machines can achieve accuracy in the range of ±0.2 lb at 50 lb target weights, depending on product characteristics. This level of control is particularly important for food and ingredient producers looking to minimize giveaway while maintaining compliance.
What Hygienic Design Features Make Food and Ingredient Powder Packaging Equipment Easy to Clean?
One of the most critical requirements in food and ingredient powder packaging is the ability to clean equipment quickly and thoroughly. Frequent product changeovers, allergen control, and sanitation protocols demand equipment that is designed with cleaning in mind.

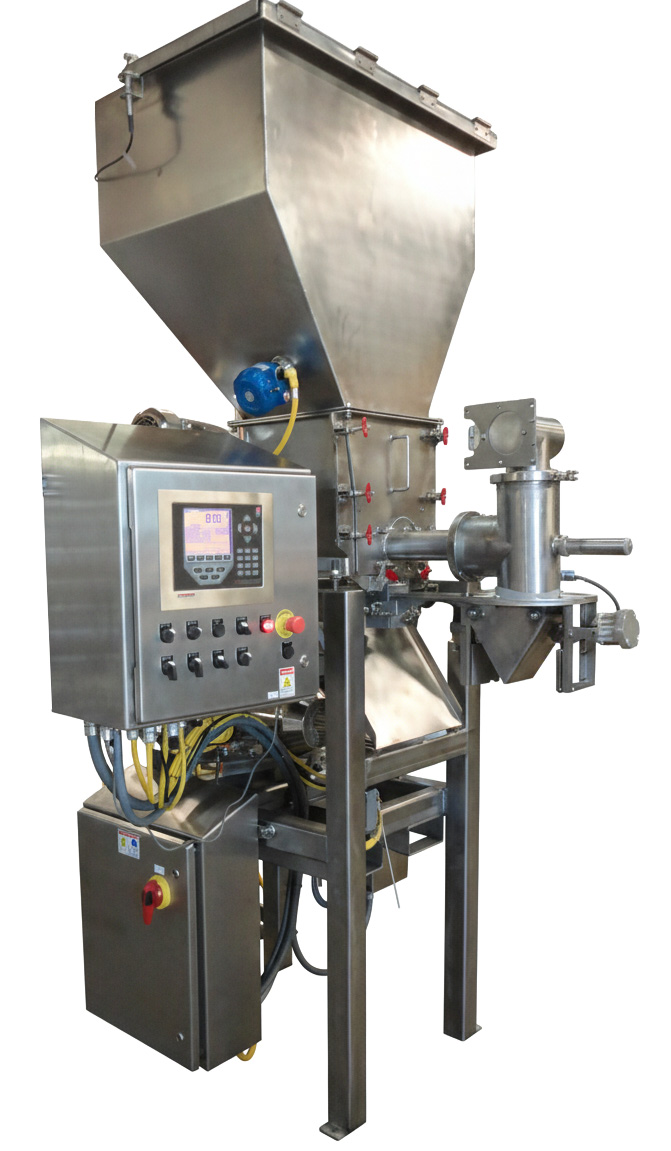

Key hygienic design features commonly found on food-grade auger fillers include:
- Tool-less or quick-release auger removal
- V-clamp connections on fill spouts and product contact components
- Removable hopper fronts for inspection and cleaning
- Smooth internal surfaces to reduce product buildup
- Sealed shaft assemblies to isolate bearings and drives from product
These design elements allow operators to disassemble product contact parts rapidly, clean them offline if required, and return the machine to service with minimal downtime. For facilities running multiple food or ingredient SKUs, this capability can often be as important as fill accuracy.
How Does a Sealed Auger Filler Design Prevent Product Leakage and Cross-Contamination?
Powder leakage can create sanitation risks, affect weight accuracy, and lead to cross-contamination.
Auger fillers intended for food and ingredient powders typically incorporate:
- Air-purged shaft seals to prevent powder migration
- Enclosed auger housings
- Gasketed interfaces at product contact points
- Dust pickup or spout-level dust control provisions
By sealing the product path and isolating moving components, these systems help maintain a clean operating environment while protecting both the product and the equipment.
How Can Auger Fillers Be Configured for Different Food and Ingredient Powders?
No two food powders behave the same! Protein powders may be lightweight and aerated, while corn flour or starch may pack densely and flow differently. A key advantage of auger-based filling machines is their adaptability.
Common customization options include:
- Multiple auger geometries for different flow characteristics

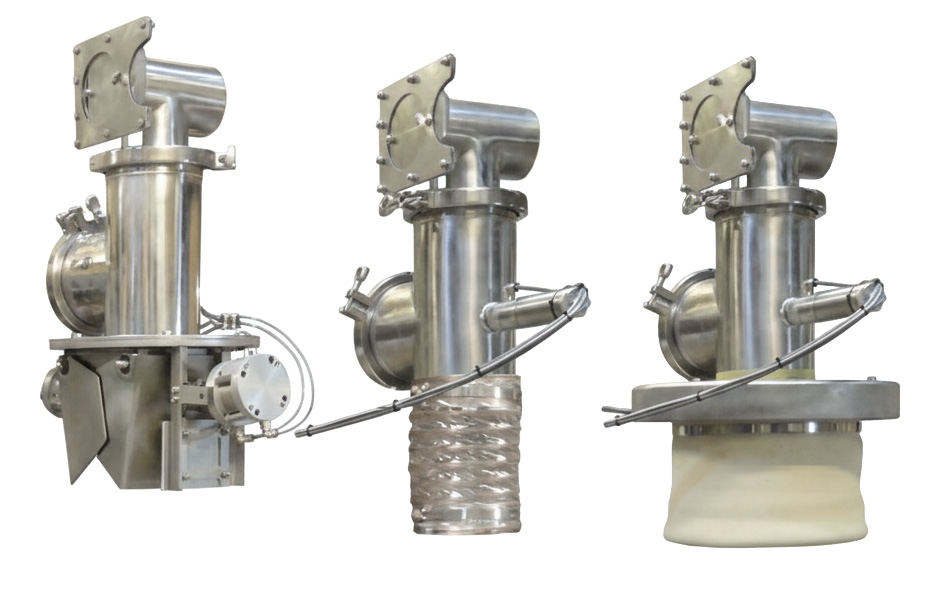

- Interchangeable fill spouts sized for specific bag styles
- Bag inflation or pre-open systems for improved bag presentation
- Surge hoppers or level sensors for consistent feed conditions
- Control system parameter sets for different products
This flexibility allows a single auger filler platform to support a wide range of food and ingredient powders without sacrificing performance.
