Valve Bag Filling Machines

valve bag filling machinesA valve bag filling machine is used to quickly and efficiently fill valve-type bags with powders or granular products.  The filling spout on the machine is inserted into and enclosed by the bag opening.  This minimizes product spill and dust emissions.

There are four types of valve bag filling machines: air, auger, impeller and gravity-fed.  They can fill paper, plastic or poly woven valve bags to weights ranging from 20-110 pounds at rates up to 24 bags per minute depending on the type of system.  They are used in the following industries:  aggregate, stone, minerals, agriculture, feed, seed, cement, concrete, chemical, food, ingredients, and landscaping products industries.

Watch a Video:



Get a Price Quote - Express Contact Form



Model 200 Auger Fed Valve Bag Filling Machine

Valve Bag Filling Machine - 230 Auger Fed

Model 230 Auger Fed Valve Bag Filling Machine

  • For dusty powders, powder and granular mixes, flakes, fibrous materials, and semi-free flowing powders
    • Food Products: Cocoa Powder, Flour, Baker Mixes, Guar Gum, Cottonseed Hulls, Rice Hulls, and Black Pepper
    • Chemicals: Organic Pigments, Chemical Resins
    • Minerals & Rock Products: Cement, Grout & Plaster, Diatomaceous Earth
  • Fill paper valve bags, plastic valve bags, poly woven valve bags, open mouth bags, pails and drums
  • Fill rate of 1 – 5 bags per minute
  • Automatically fill 20 – 110 pound bags and containers (9 – 50 KG)
  • Material is fed by auger into the bag or container until desired fill weight has been reached
  • Enclosed material product flow path from supply hopper, through machine and into bag
  • Includes machine controls, scale, dust collection, bag clamp and more
  • Custom options available upon request
  • 1 year limited warranty

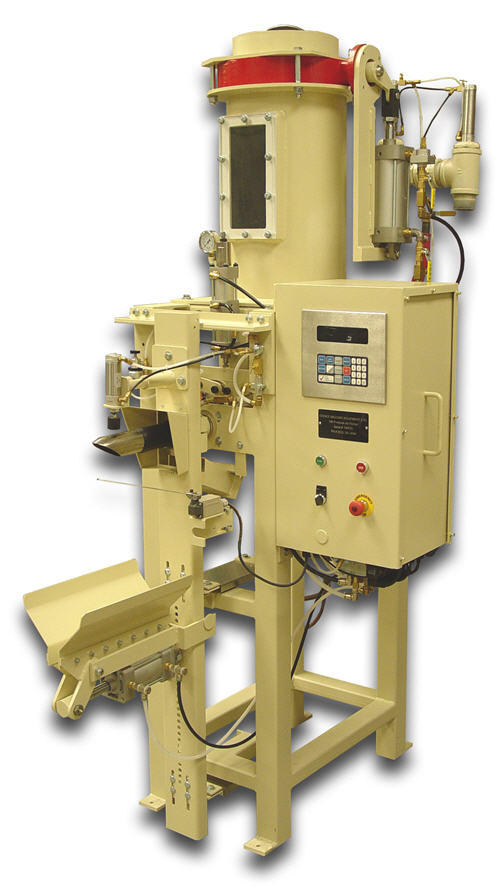

Model 730 Pressure Flow Air Valve Bag Filling Machine

Valve Bag Filling Machine - Model 730 Pressure Flow Air

Model 730 Plug Flow Air Valve Bag Filling Machine

  • For fine powders, mixes and blends of powders and granules, and granular materials

    • Grain, Flour, Rice, Soybeans, Peanut Flour, Oat Flour, Sugar, Salt, Spices, Starch, Milk Powder, Sodium Bi-Carbonate, Guar Gum
    • Cattle Feed, Fish Feed, Bird Seed, Grass Seed
    • PVC Resin, Plastic Pellets, Fertilizer, Carbon Black, Titanium Dioxide, Activated Carbon, Graphite, Coal, Barite, Bentonite, Limestone, Iron Oxide, Zinc Oxide, Mortar Mixes, Calcium Carbonate Powders, Gypsum
  • Fill rate of 1 – 12 bags per minute
  • Fill 20 – 110 pound valve bags made of paper, plastic or poly-woven material
  • Control air 80 PSI at 1 CFM per bag fill cycle
  • Automatic electronic scale gross weighing filler that simultaneously fills and weighs product directly into the bag.
  • Includes machine controls, scale, dust collection, bag clamp and more
  • Custom options available upon request
  • 1 year limited warranty

Get a Price Quote - Express Contact Form

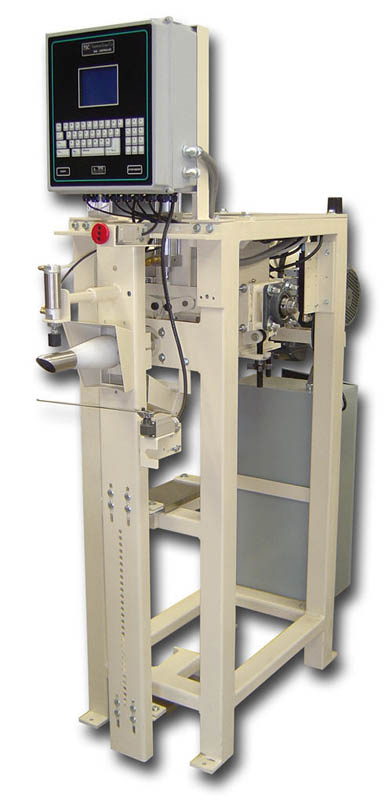

Model 830 Paddle Flow Impeller Valve Bag Filling Machine

Valve Bag Filling Machine - Model 830 Paddle Flow Impeller Air

Model 830 Paddle Flow Impeller Valve Bag Filling Machine

  • For fine powders of mid-ranged to high bulk density (100 mesh and below) between 50-100 pounds per cubic foot
    • Portland Cement, Mortar Mixes, Stucco, Grout, Flyash, Bentonite Clay, Plaster
    • Gypsum, Barite, Calcium Carbonate
  • Fill rate of 1 – 8 bags per minute
  • Fill 20 – 110 pound valve bags made of paper or plastic
  • Material is fed by gravity into the product feed inlet.
  • Then the product is conveyed by opposing twin feed screws into the impeller which conveys the product into the bag.
  • Automatic electronic scale gross weighing filler that simultaneously fills and weighs product directly into the bag.
  • Includes machine controls, scale, dust collection, bag clamp and more
  • Custom options available upon request
  • 1 year limited warranty

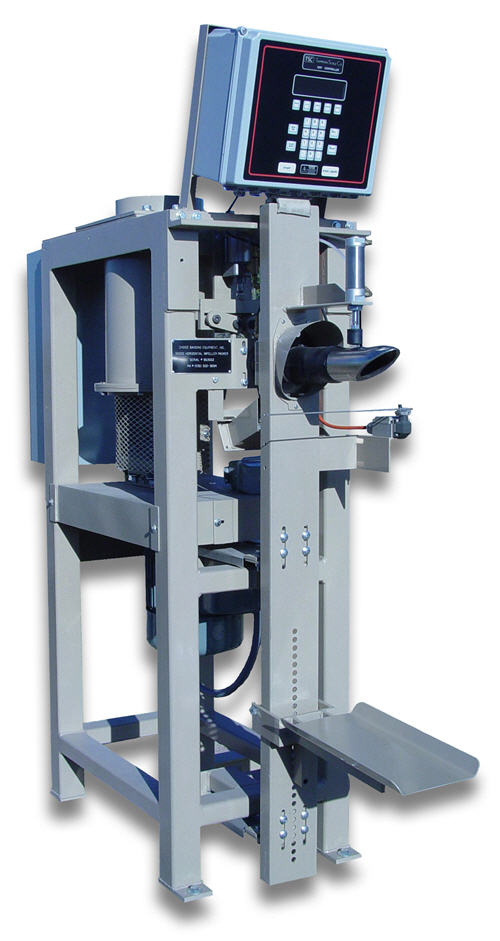

Model 930 Horizontal Impeller Valve Bag Filling Machine

900 Series Horizontal Impeller Packers

Model 930 Horizontal Impeller Valve Bag Filling Machine

  • For fine free-flowing powders of low to mid-ranged bulk density (100 mesh and below) between 15-50 pounds per cubic foot

    • Light Weight Cement Mixes (Vermiculite, Polystyrene), Kaolin Clay, Silica, Talc, Hydrated Lime, Plaster, Gypsum
    • Graphite, Carbon Black, Organic Pigments, Fly Ash, Alumina
    • Oat & Rice Hull Ash
    • Cocoa Powder, Wheat Flour, Cocoa Powder
  • Fill rate of 1 – 8 bags per minute
  • Automatically fill 20 – 110 pound valve bags made of paper and plastic
  • Material is fed by gravity into the product feed inlet.
  • Then the horizontal impeller creates a positive draw on the product moving it through the feeder and into the bag.
  • Automatic electronic scale gross weighing filler that simultaneously fills and weighs product directly into the bag.
  • Includes machine controls, scale, dust collection, bag clamp and more
  • Custom options available upon request
  • 1 year limited warranty



Model 1000 Fully Automatic Valve Bag Placers

Automatic Valve Bag Placer with Filling Machines

Automatic Valve Bag Placers

  • Available for use with Models 205, 230, 720, 830 and 930
  • Designed to place and fill block style paper or plastic valve bags
  • Configurations allow for the placing of one, two or three valve bags simultaneously
  • Bag placing rate up to 12 bags per minute
  • Capable of sustained production rates up to 720 bags per hour
  • Bags enter the system via a bag indexing conveyor with a holding capacity of up to 300 bags
  • Each bag is opened and tested before a placing arm secures the bag and delivers it to the filling spout
  • Upon completion of bag filling cycle, the filled bags are automatically dropped on to the integrated bag discharge conveyor to be transported to a bag palletizer
Valve Bag Filling Machine and Automatic Bag Placer

Automatic Bag Staging and Placing

Automatic Valve Bag Filling and Placing

Automatically placing bags to be filled with Garnet up to 16 bags per minute

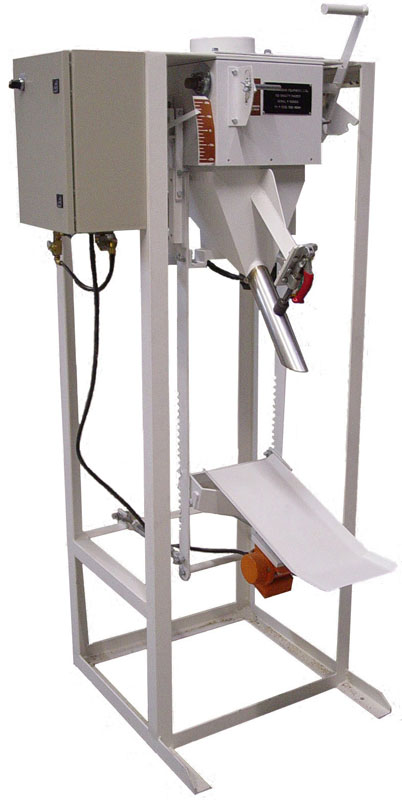

Model 600 Gravity Fed Valve Bag Filling Machine

Valve Bag Filling Machine - 600 Gravity Fed

Model 600 Gravity Fed Valve Bag Filling Machine

  • For non-dusty, free-flowing, granular and pelleted materials
    • Fertilizer, Corn, Soybeans, Salt, Sugar, Seeds, Hard Grains
    • Sand, Limestone, Refractory Materials, Plastic Pellets
  • Fill rate of 1 – 3 bags / minute
  • Fill 20 – 110 pound bags made of paper, plastic or poly woven valve bags
  • Material is fed by gravity through the gravity gate into a funnel spout and into the bag
  • No air or electricity is required for basic operation and is an automatic gross weighing filler that simultaneously fills and weighs product directly into the bag.
  • Includes machine controls, scale, dust collection, bag clamp and more
  • Custom options available upon request
  • 1 year limited warranty

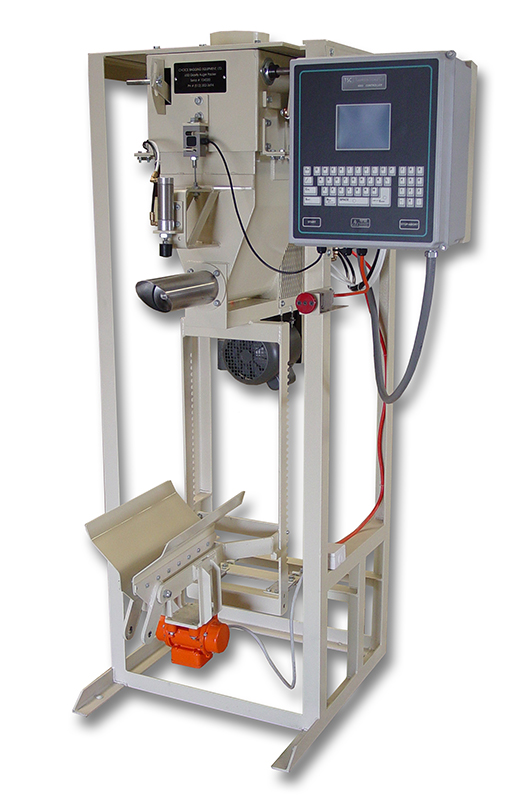

Model 650 Auger Fed Valve Bag Filling Machine

Valve Bag Filling Machine - 650 Auger Fed

Model 650 Auger Fed Valve Bag Filling Machine

  • For non-dusty, free-flowing, granular and pelleted materials
    • Fertilizer, Corn, Grains, Seeds, Soybeans, Salt, Sugar
    • Sand, Limestone, Refractory Materials, Plastic Pellets
  • Fill rate of 1 – 5 bags per minute
  • Automatically fill 20 – 110 pound valve bags made of paper, plastic or poly woven material
  • Material is fed by gravity through the gravity gate, into an auger feeder that conveys it into the bag
  • No air or electricity is required for basic operation and is an automatic gross weighing filler that simultaneously fills and weighs product directly into the bag.
  • Includes machine controls, scale, dust collection, bag clamp and more
  • Custom options available upon request
  • 1 year limited warranty



Model 720 Plug Flow Air Valve Bag Filling Machine

Valve Bag Filling Machine - Model 720 Plug Flow Air

Model 720 Plug Flow Air Valve Bag Filling Machine

  • For powders and mixes / blends made of granular products (includes abrasive materials)

    • Concrete, Stucco, Grout, Mortar Mixes, Limestone, Garnet, Sand & Refractory Materials
    • Bentonite, TIO2, Iron Oxide, Carbon Black
    • Plastic Pellets, Fertilizer, Seeds
  • Fill rate of 1 – 12 bags per minute
  • Fill 20 – 110 pound valve bags made of paper, plastic or poly-woven material
  • Control air 80 PSI at 1 CFM per bag fill cycle
  • Material is fed by gravity into the product feed inlet. When a fill cycle is initiated, the product is fluidized by the air slide.
  • Automatic electronic scale gross weighing filler that simultaneously fills and weighs product directly into the bag.
  • Includes machine controls, scale, dust collection, bag clamp and more
  • Custom options available upon request
  • 1 year limited warranty

Get a Price Quote - Express Contact Form
