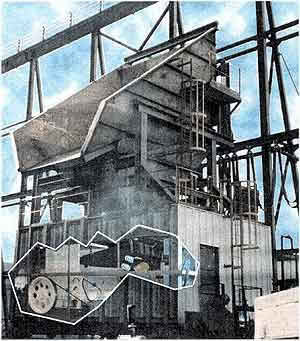

Receiving hopper and crusher runs alongside a petroleum coke pit on rails and receives petroleum coke from an overhead clamshell bucket. Up to 36 inch diameter lumps drop into the receiving hopper that contains slotted grizzly bars with plus 12 inch material being returned by gravity to the deck. A vibrating feeder located below the hopper meters the material into a T.J. Gundlach two roll crusher. Crushed material discharges directly onto a product take away belt conveyor.
- Up to 50% FEWER fines
- INSTANT product adjustment while running-with out tools!
- AUTOMATIC tramp iron relief system
- NO screens and NO plugging
Material: petroleum coke
Feed: 12 inch by 0 inch
Product: 2 inch by 0 inch
Capacity: 675 MTPH
Unit: 4060S Two Roll Single Stage Crusher
HP: Two 75 HP TEFC Motors
