Roll Crushers – Single & Double Stage

roll crushers single and double stage

Roll Crushers with Single & Double Rolls

Roll crushers deliver consistent three-dimensional product sizing control. Continuous intermeshing teeth reduce the amount of fines present in finished product, while crushing and eliminating over-size materials. Straightforward housing mechanisms and an enclosed gearbox allow for easy access and maintenance.

Shafts, bearings, and other components are all heat-treated, forged from durable alloy materials, and designed to handle extreme impacts and abrasive materials. The result is a durable, rugged machine that requires little maintenance compared to other crushing solutions. The primary (and only, in the case of single stage units) drive can be structured as a sheave or flywheel V-belt. Secondary drives, in the case of double stage roll crushers, can run on cog-belts or super durable roller chains.

Roll crushers (whether single stage or double stage) are designed to size and process a wide variety of materials, including:

  • Coal
  • Coke
  • Soft Ores
  • Industrial Minerals
  • Friable Materials
  • Fertilizer
  • Potash
  • Limestone
  • Glass
  • Salts
  • Lime

Four different product series are offered for roll crushers, and each is available in single stage and double stage units.

2000 Series

Roll diameters range from 13-15” (330-380 mm)

Roll faces range in width up to 60” (1525 mm)

Designed to crush materials with compressive strength ratings below 8,000 PSI (55 Mpa)

3000 Series

Roll diameters range from 13-15” (330-380 mm)

Roll faces range in width up to 80” (2030 mm)

Designed to crush materials with compressive strength ratings below 12,000 PSI (83 Mpa)

4000 Series

Roll diameter options are 24” (610 mm) and 30” (762 mm)

Roll faces range in width up to 100” (2540 mm)

Designed to crush materials with compressive strength ratings below 18,000 PSI (124 Mpa)

5000 Series

Roll diameter options are 30” (762 mm) and 36” (915 mm)

Roll faces range in width up to 120” (3050 mm)

Designed to crush materials with compressive strength ratings below 22,000 PSI (152 Mpa)

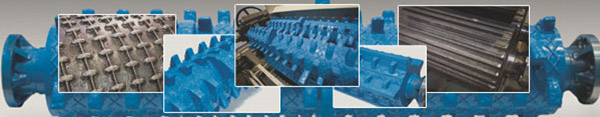

Different Roll Designs for Crushers

Many Different Roll Designs for Crushers



Images from Gundlach Crushers.
